REQUIRED TOOLS

  • Hose cutter



HELPFUL TOOLS

  • Hammer
  • Drain Y piece
  • Drain plug
  • Drill bit 16mm



REQUIRED PARTS





BEFORE YOU START



PROCEDURE

  • Place the Perfect Moose Jack on the counter.
  • Check the contents of the installation kit.
  • Install the water-filtration or use a container of filtered water.
  • Insert the water inlet hose to the water filtration with the John Guest fitting 3/8 pushfit - 3/8M BSP. Or insert and secure the water inlet hose into the container of filtered water.

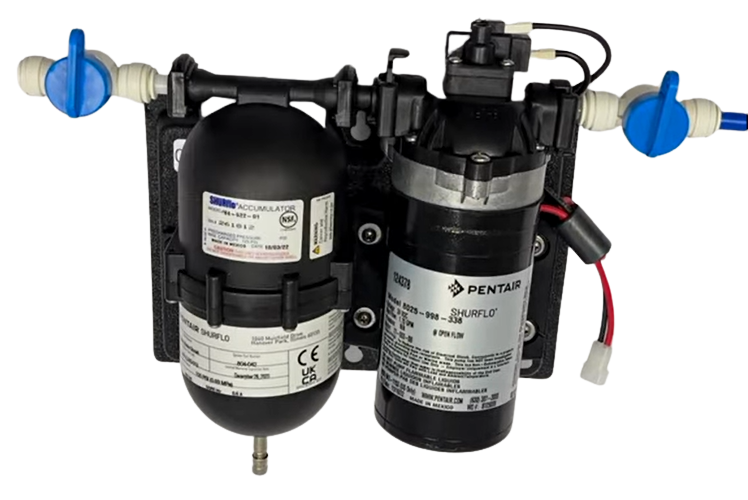

  • Install a shut off tap on the inlet and outlet of water booster pump.
  • Connect the water inlet hose to the shut off tap on the inlet of the water booster pump.

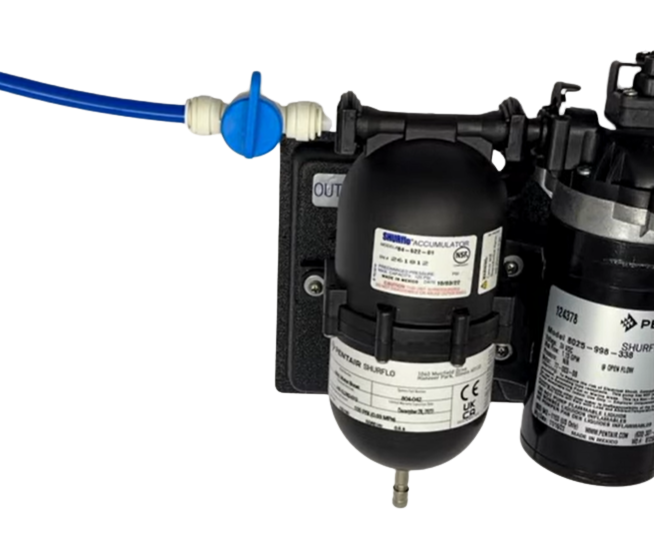

  • Insert the water inlet hose into the shut off tap on the outlet of the water booster pump.

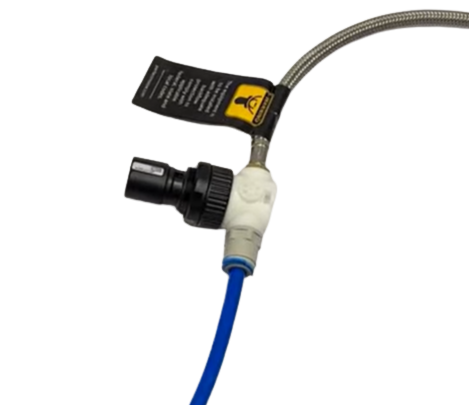

  • Connect the pressure reducer with metal braided hose to the water inlet hose.
  • Close the shut off taps.

  • Install a blue fitting clip at both connections to the shut-off taps and at the connection to the pressure reducer.
  • Connect the booster pump to the power supply. Check for leakages.

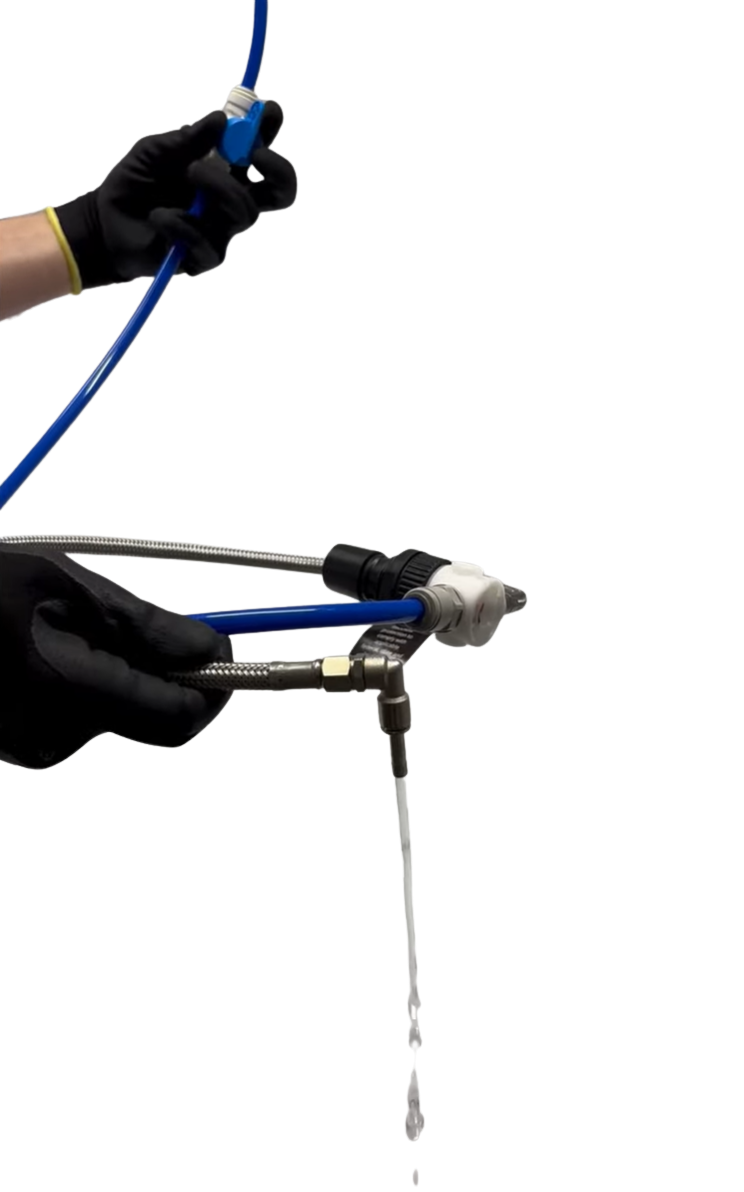

  • Open the shut off taps and flush 1 L of water through the water inlet hose.
  • Close the shut off tap.

  • Remove the yellow plug from the water inlet of the Perfect Moose Jack.

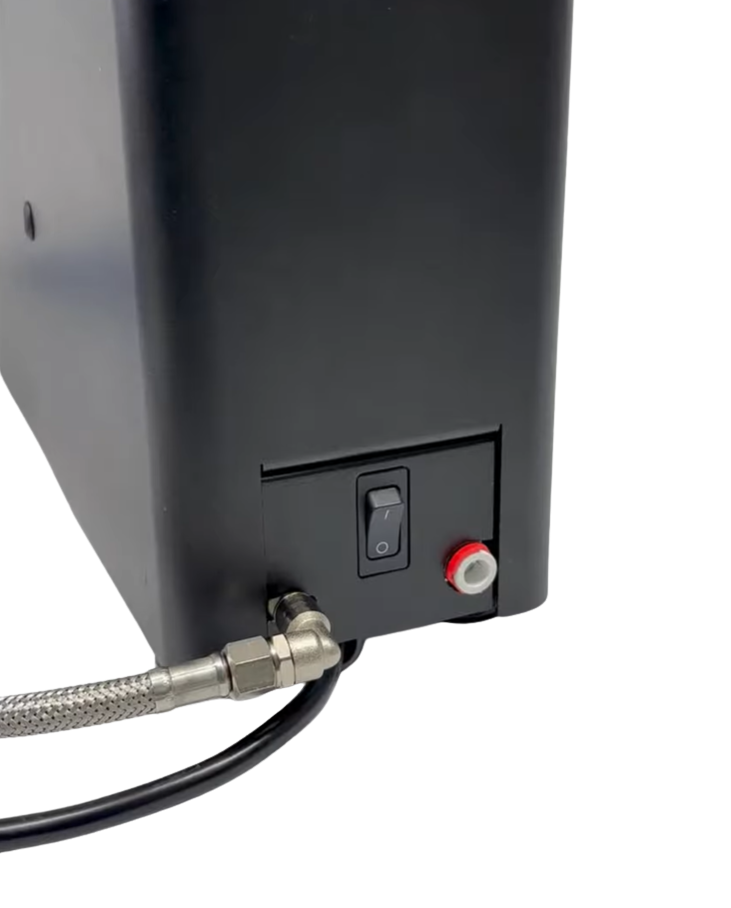

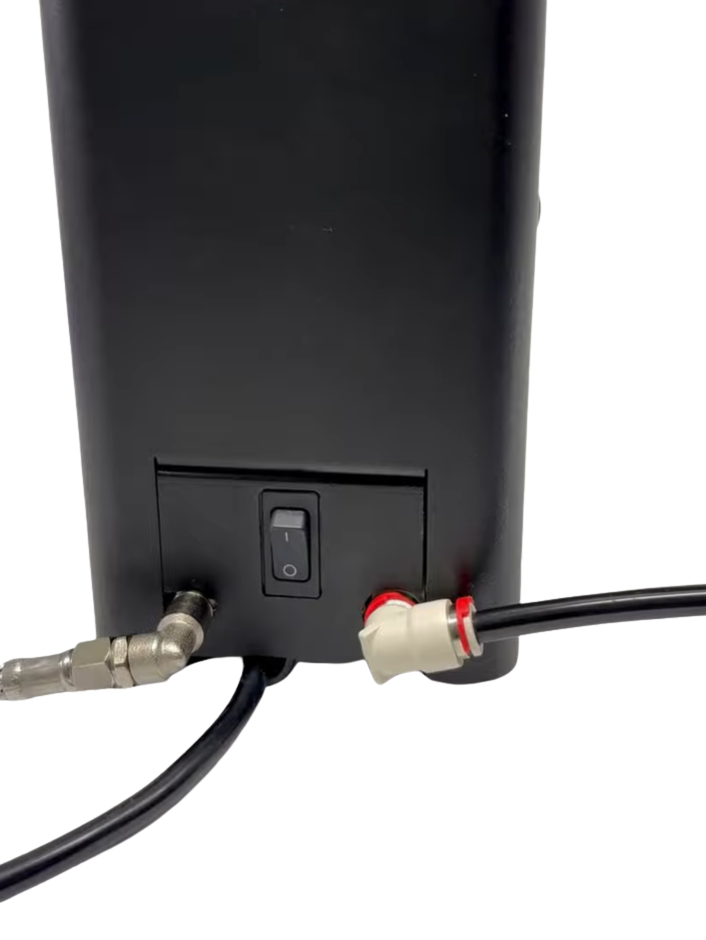

  • Insert the metal braided hose with elbow into the water inlet at the back of the Perfect Moose Jack.

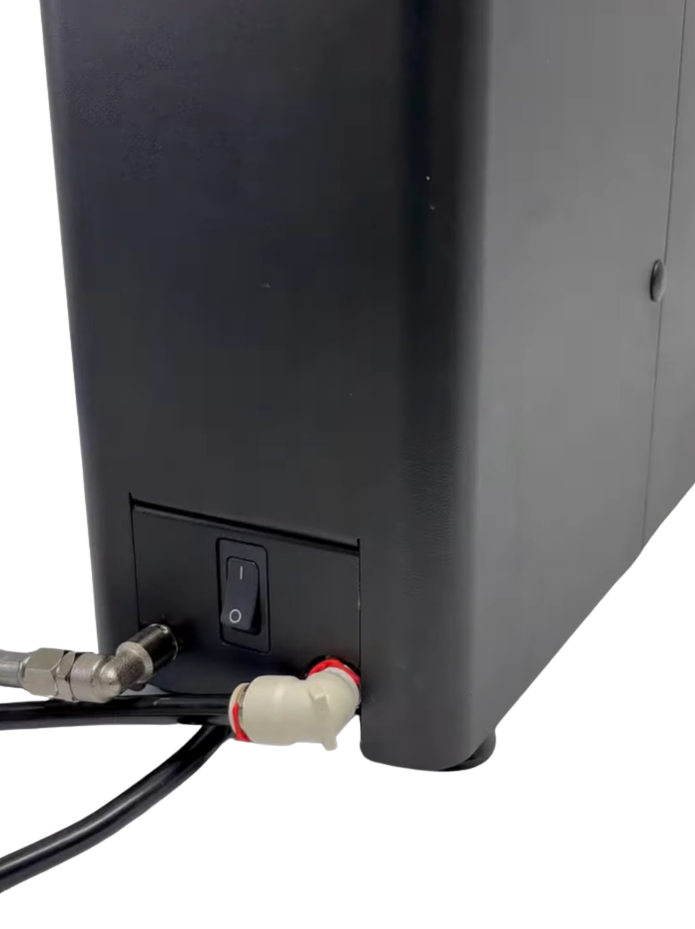

  • Insert the drain hose into the drain elbow fitting at the back of the Perfect Moose Jack.
  • Insert the drain hose into the drain elbow fitting.
  • Lock the connection with the red fitting clip.

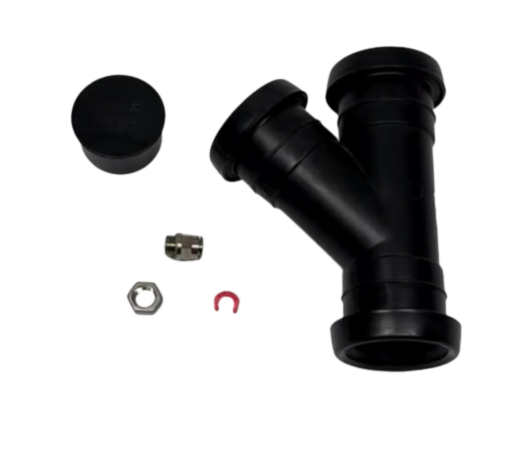

  • Take a drain Y piece and drain plug.
  • Make a 16 mm hole in the drain plug.

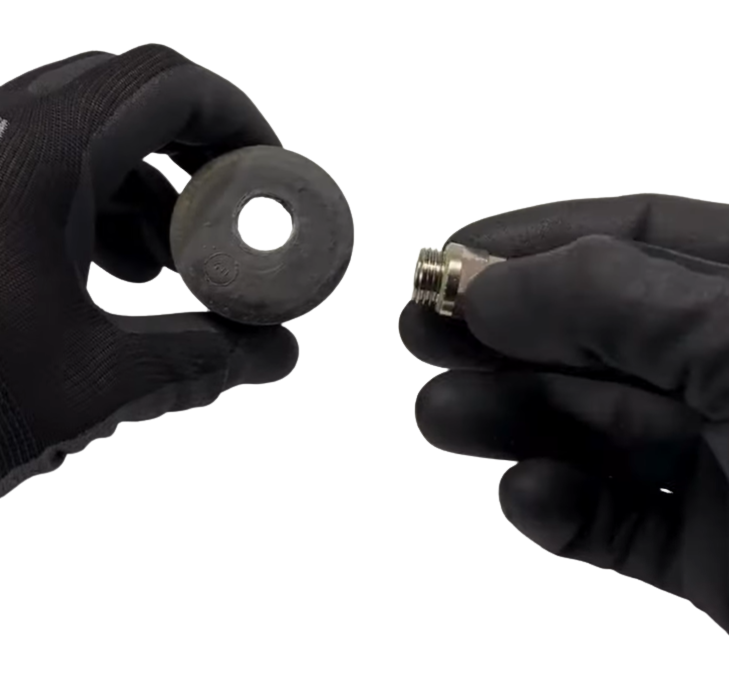

  • Install the drain pushfit in the drain plug.
  • Insert the drain plug into the drain Y piece.
  • Insert the drain hose into the drain pushfit.
  • Lock the connection with the red fitting clip.

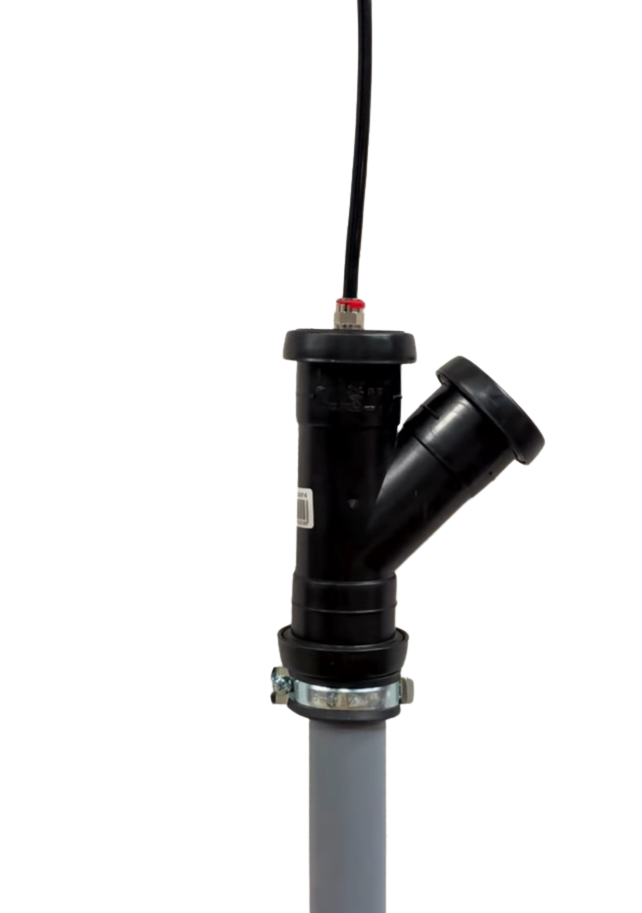

  • Install the drain Y piece on the drain pipe.

  • Open the shut-off tap.
  • Check for leakages.
  • Connect the power cable to the power socket.
  • Turn on the Perfect Moose Jack
