REQUIRED TOOLS

  • Hose cutter



HELPFUL TOOLS

  • Hammer
  • Drain Y piece
  • Drain plug
  • Drill bit 16 mm



REQUIRED PARTS





BEFORE YOU START



PROCEDURE

  • Place the Perfect Moose Jack on the counter.
  • Check the contents of the installation kit.
  • Install the water-filtration and check if the pressure is min 3Bar after the water-filtration.
    WARNING! If the pressure is below 3 bar, install with a booster pump.

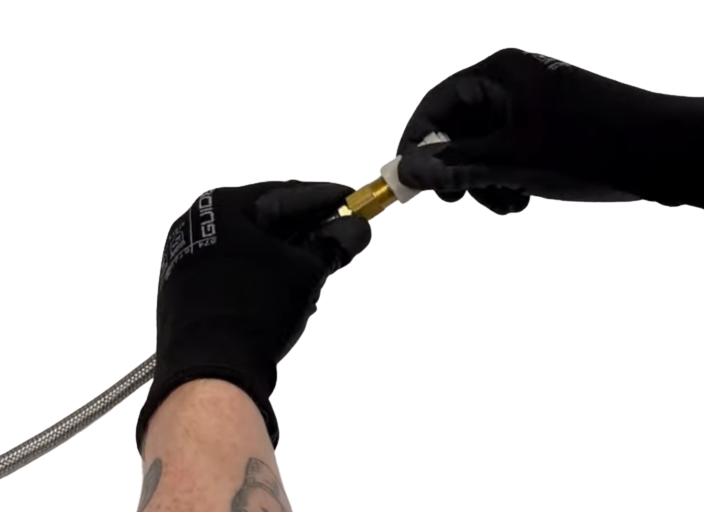

  • Connect the water inlet hose to the water-filtration with the John Guest fitting 3/8 pushfit - 3/8M BSP.

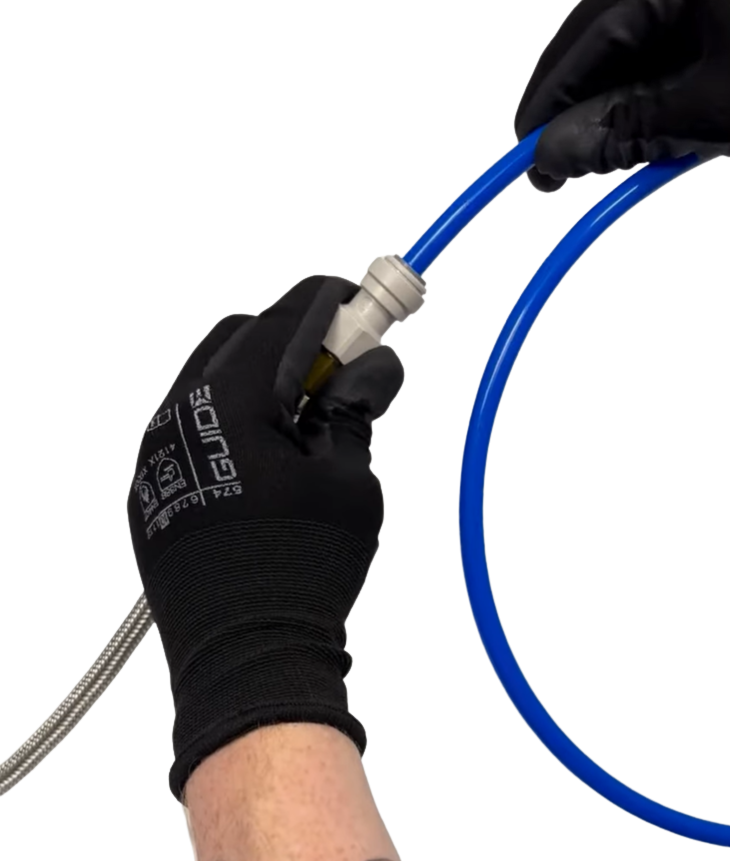

  • Insert the water inlet hose into the John Guest fitting.

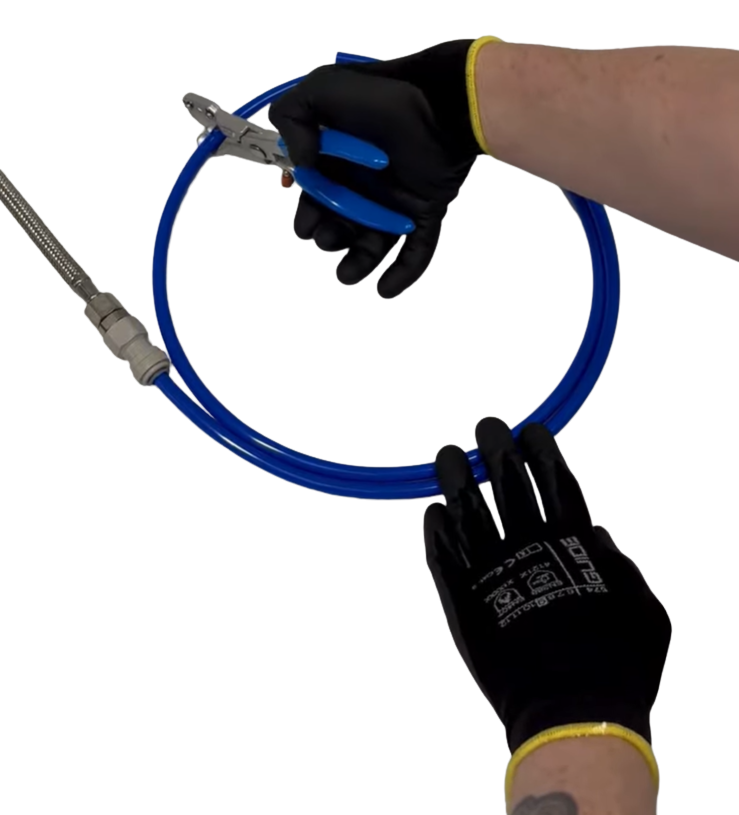

  • Cut the water inlet hose to the required length with a hose cutter.

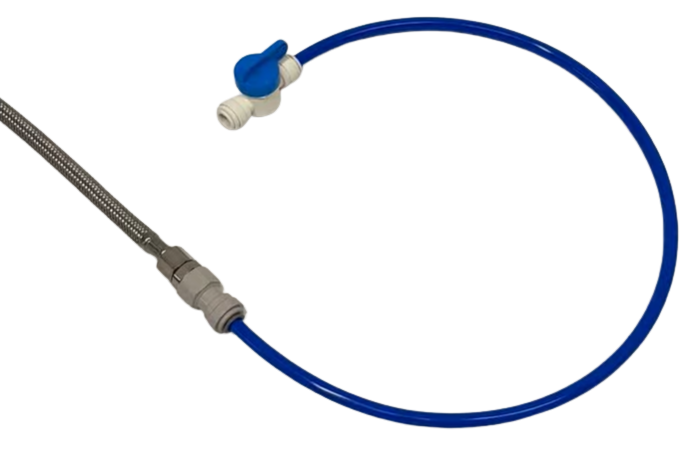

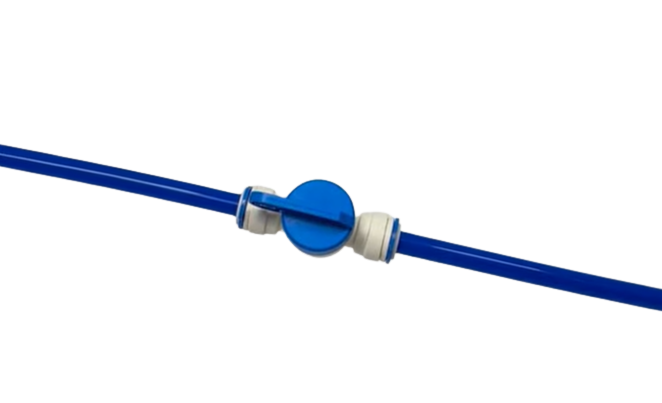

  • Install the shut off tap on the water inlet hose.

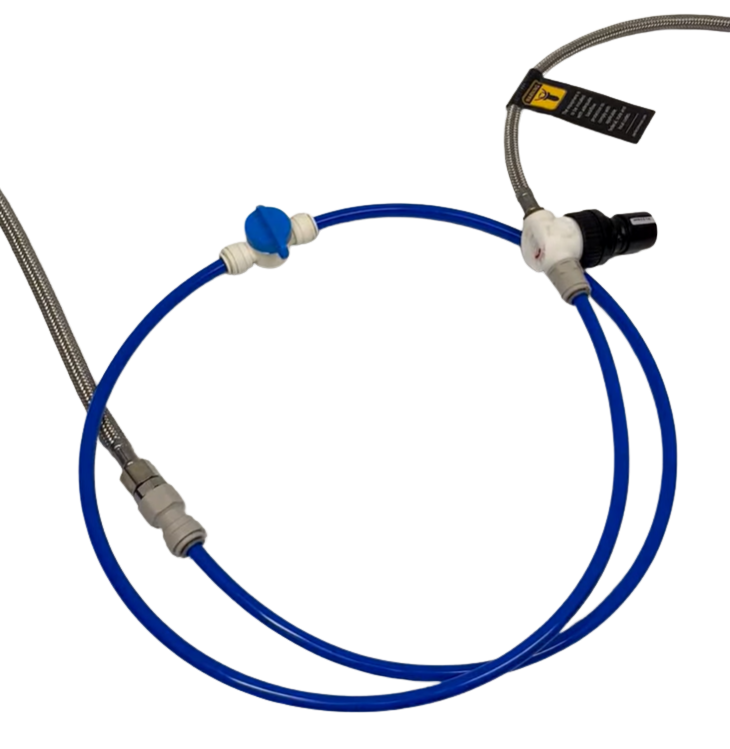

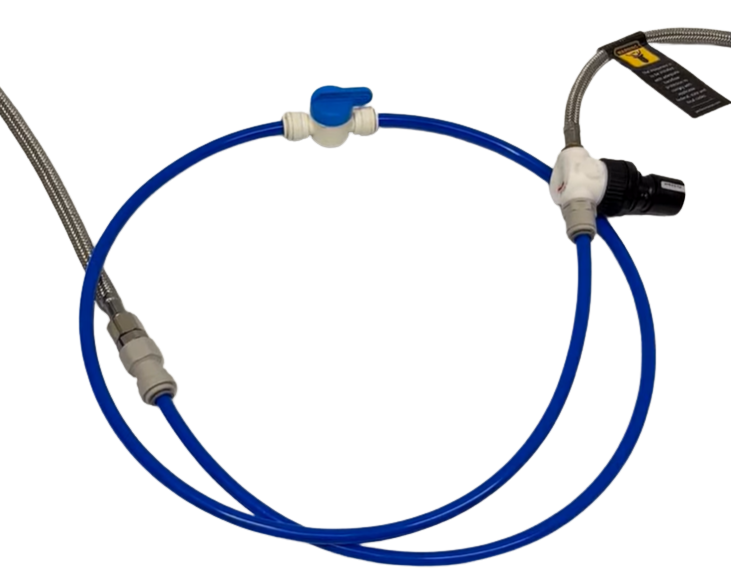

  • Connect the pressure reducer with metal braided hose to the water inlet hose.
  • Close the shut off tap.
  • Install a blue fitting clip at the connection to the water filtration, at both connections to the shut-off tap and at the connection to the pressure reducer.

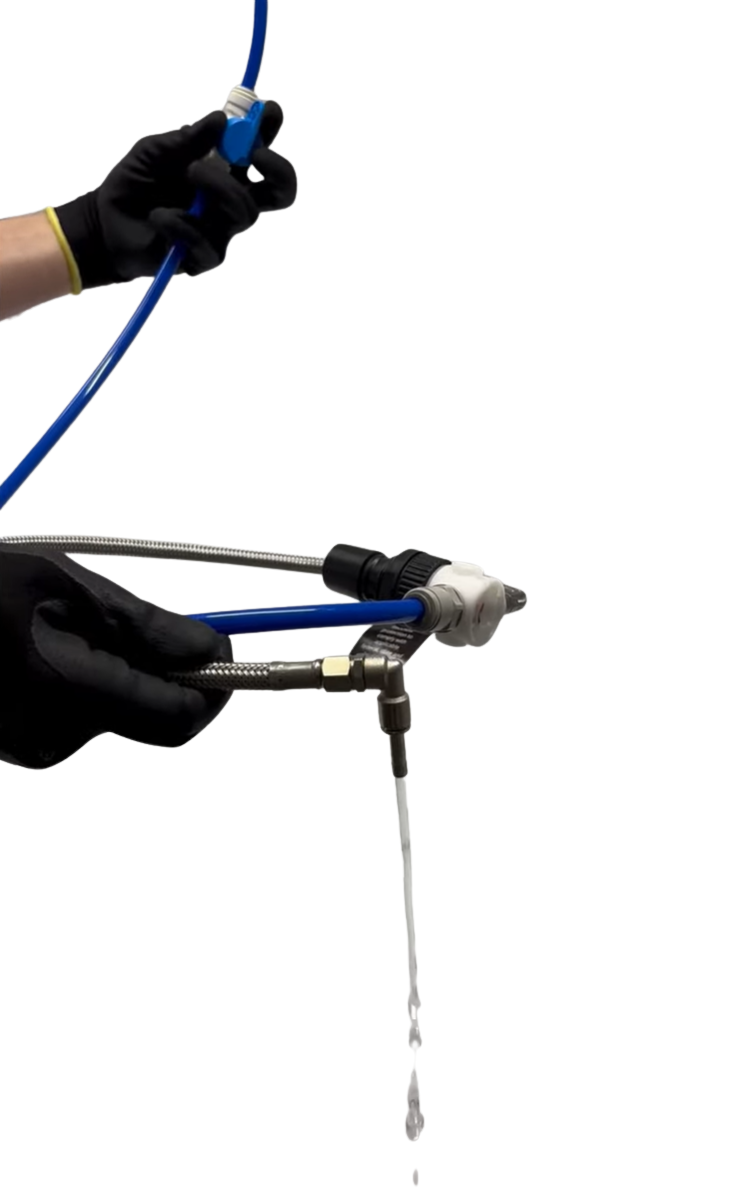

  • Open the shut off tap and flush 1 L of water through the water inlet hose.
  • Close the shut off tap.

  • Remove the yellow plug from the water inlet of the Perfect Moose Jack.

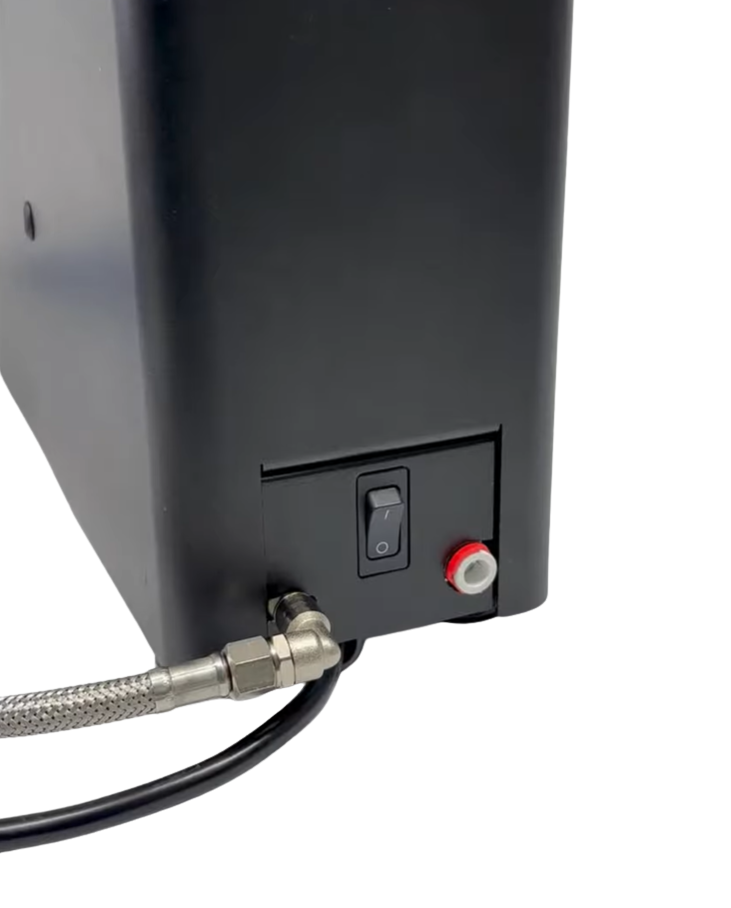

  • Insert the metal braided hose with elbow into the water inlet at the back of the Perfect Moose Jack.

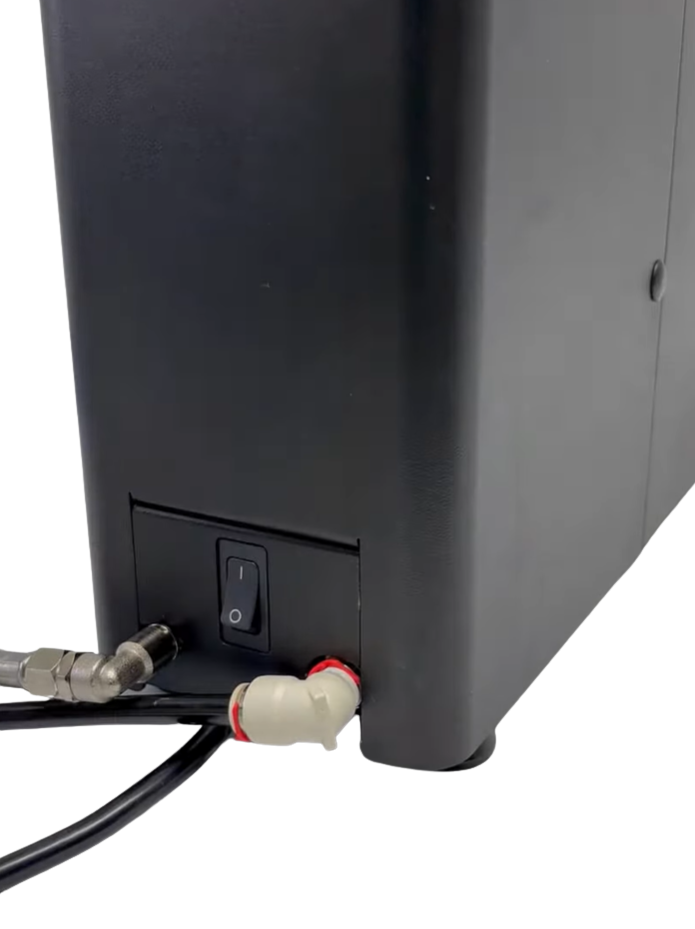

  • Insert the drain hose into the drain elbow fitting at the back of the Perfect Moose Jack.
  • Insert the drain hose into the drain elbow fitting.

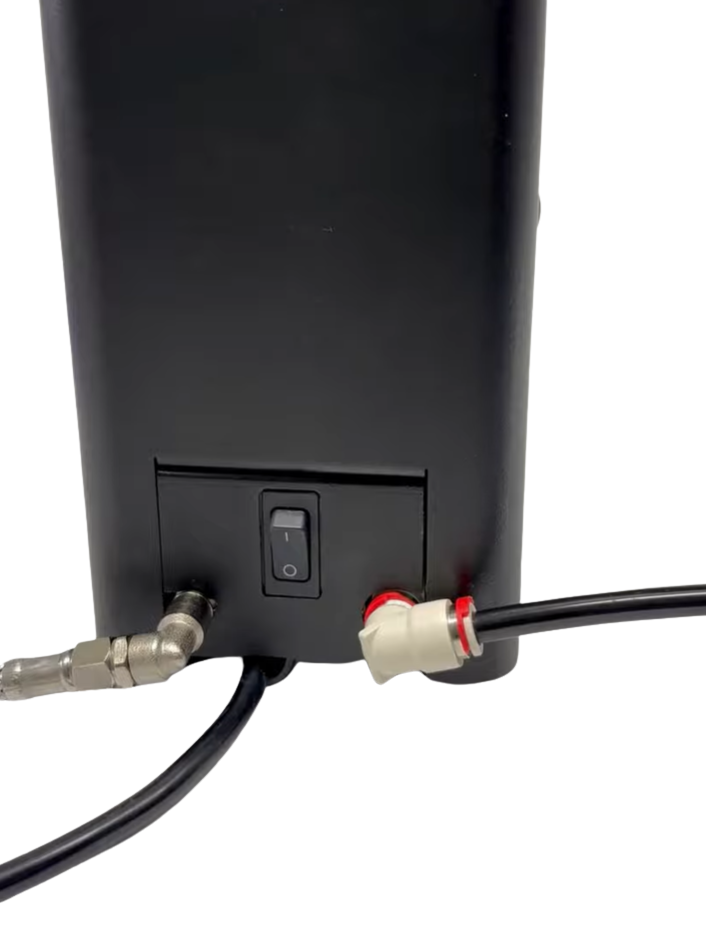

  • Lock the connection with the red fitting clip.

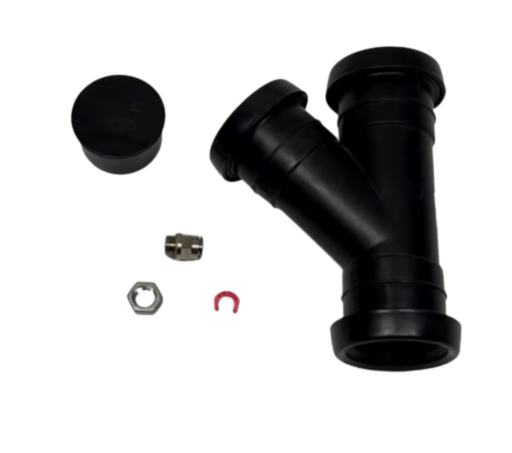

  • Take a drain Y piece and drain plug.
  • Make a 16 mm hole in the drain plug.

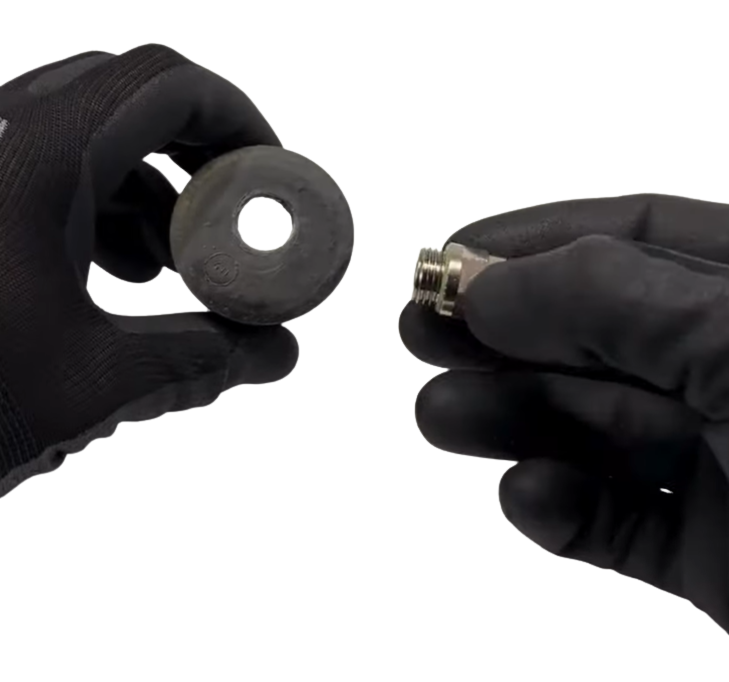

  • Install the drain pushfit in the drain plug.
  • Insert the drain plug into the drain Y piece.
  • Insert the drain hose into the drain pushfit.
  • Lock the connection with the red fitting clip.

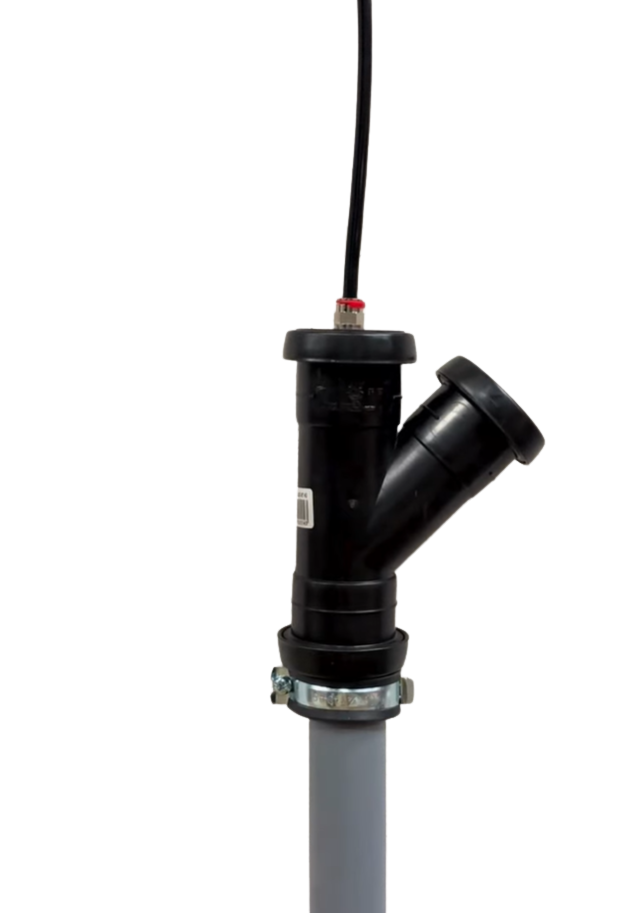

  • Install the drain Y piece on the drain pipe.


Which water filtration do I need?

Click here to find which water filter system and size of filter system is needed.
