REQUIRED TOOLS

  • Screwdriver T10 Torx head



REQUIRED PARTS



BEFORE YOU START

  • Before you start, make sure the device is turned off and disconnected!


PROCEDURE

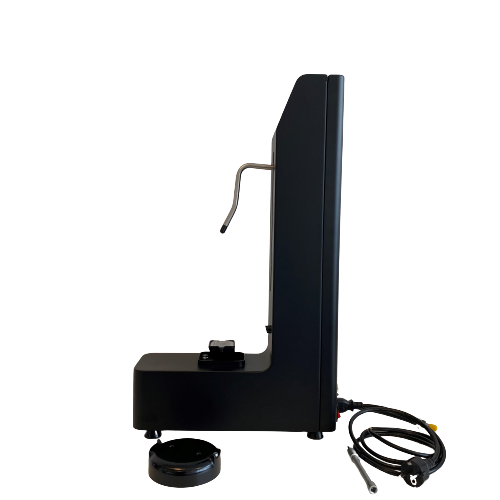

  • Remove the pitcher holder (standard or Epic) from the Moose.

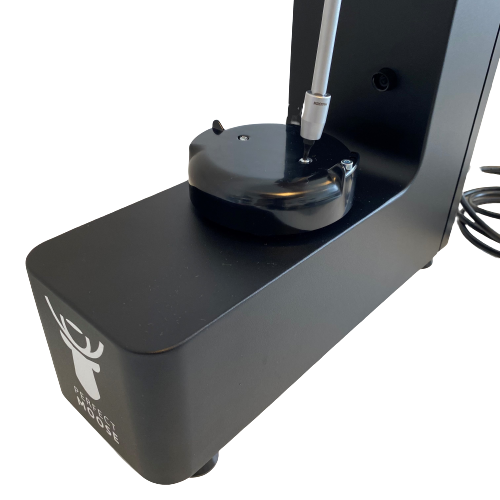

  • Unscrew the 2 screws of the pitcher holder base with a Torx T10 screwdriver. Remove the pitcher holder base from the Moose.

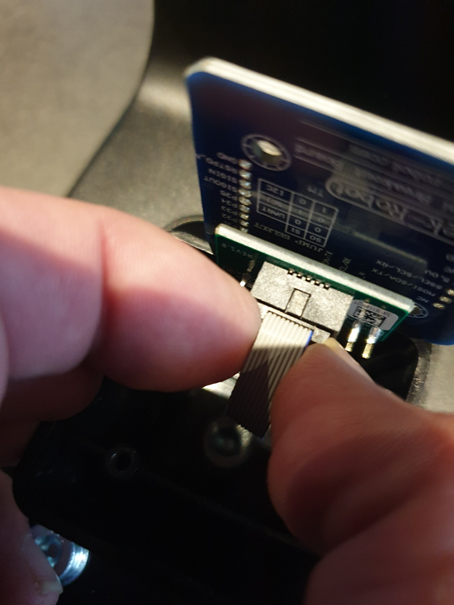

  • Unscrew the screw of the RFID module with a Torx T10 screwdriver and remove the RFID module from the RFID holder by gently pulling on the connector from the cable, not by pulling the wire.

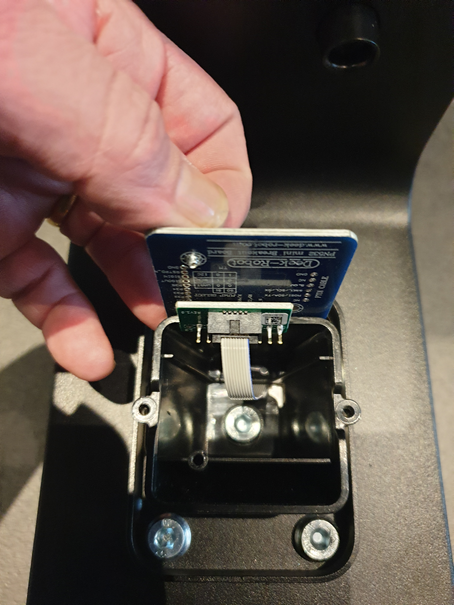

  • Connect the new RFID module on the Moose by inserting the RFID cable in the RFID module.

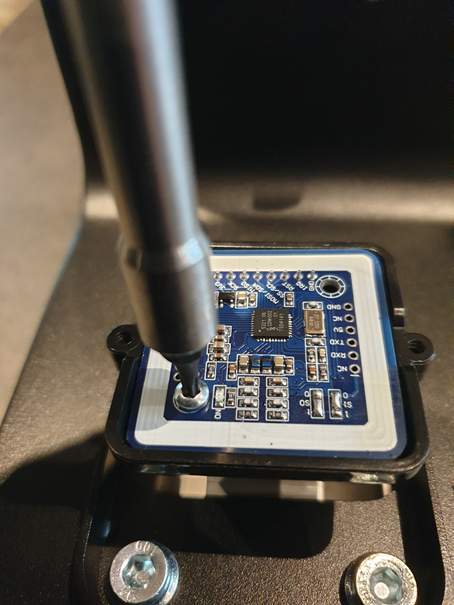

  • Place the RFID module on the RFID holder by tightening the screw with a Torx T10 screwdriver.
  • Insert back the RFID cover over the RFID module.

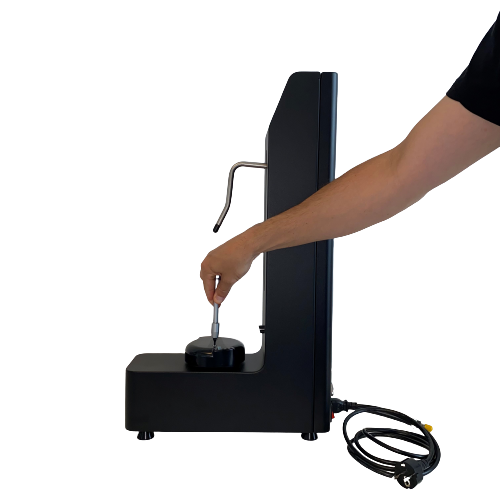

  • Place back the pitcher holder base and screw the 2 screws of the pitcher holder base with a Torx T10 screwdriver in the RFID holder.

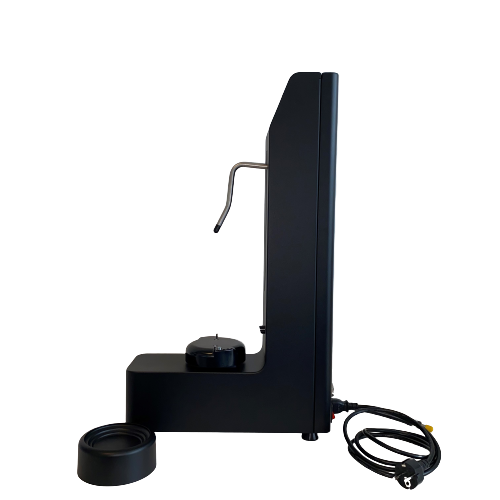

  • Place back the pitcher holder (standard or Epic) on the Moose.
